MFO-204 filter for filtering of olive oil


The filter device is intended for filtration of olive oil and other edible oils. Suitable for small and medium sized producers of oil. Depending of the type of oil and the purpose of filtering is necessary to select an appropriate filter sheet. Pump, which may be rotary or gear pump is driven by electric hand drill or pump with electric motor. Inlet and outlet pipes are adapted to user requirements. The filter has one filter sheet and is constructed of stainless steel and materials for use in the food industry.



Specifications for MFO-204:

bullet

Flow max. to 70 L/h (depending of the selection of filter sheet, pump, oil and kind of filtering)

bullet

Required pressure at the entrance to 3 bar (3 atm)

bullet

Connectors R 3/4

bullet

The size of filter sheet 20x20cm or Φ 20cm

bullet

Applicability of filter sheet, mats up to 200 L (depending of oil)

bullet

Filter type MFO-203 is suitable for connection to the electric rotary or gear pump

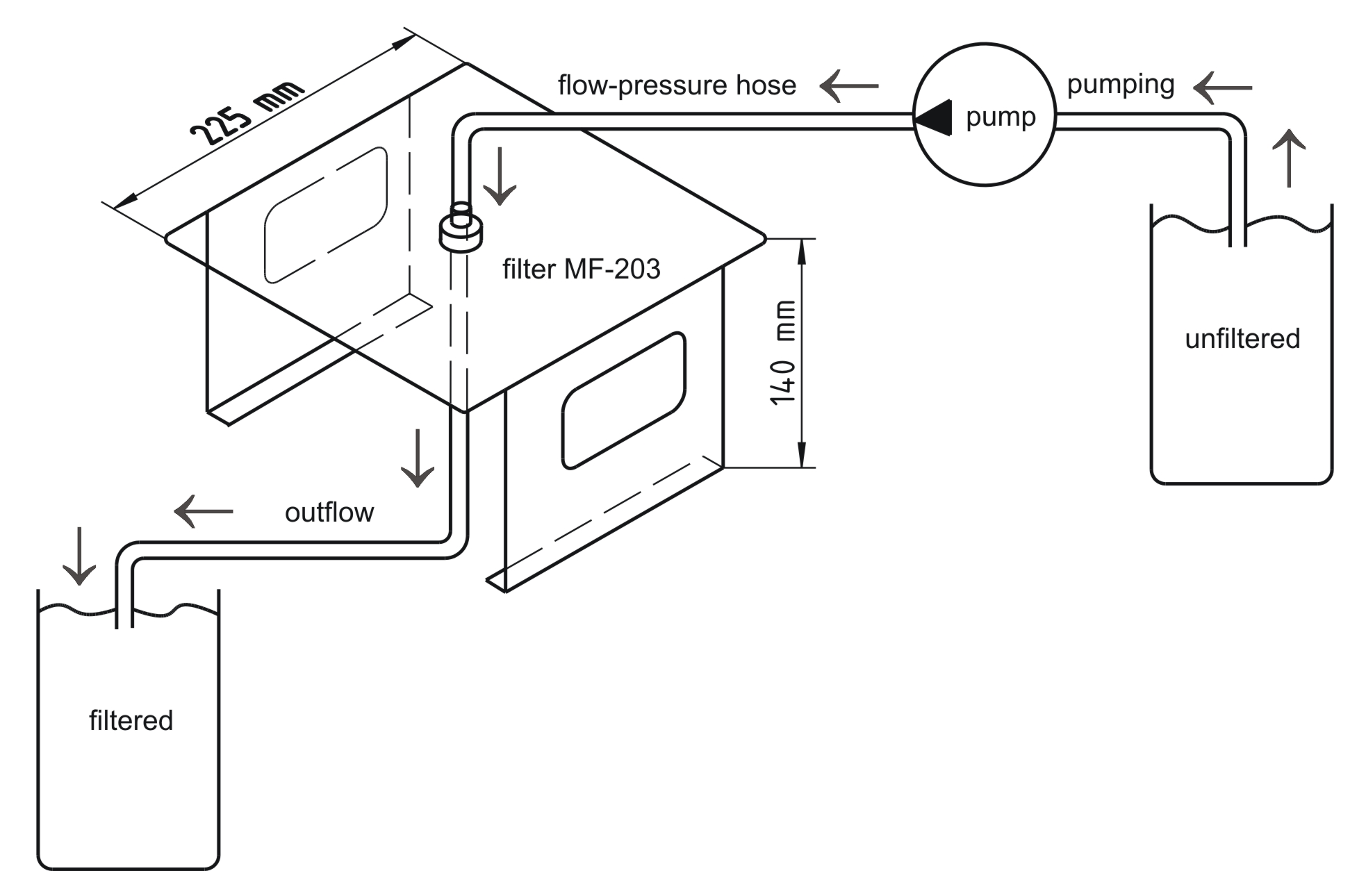

Setting up equipment for filtering
